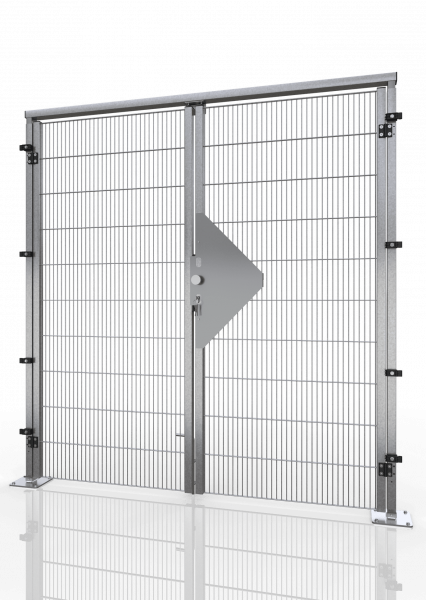

DOUBLE HINGE DOOR FOR WAREHOUSE PARTIONING TS01 ECONFENCE® BASIC LINE ZINC 1900X2000MM
| Quantity | Unit price |
|---|---|
| | €1,570.00 * ( €1,868.30 VAT included ) |
| | €1,543.00 * ( €1,836.17 VAT included ) |
Prices plus VAT (free shipping)
Delivery time - 20-25 working days
- Article-no.: BDT20019019-VZ-TS01
-
Range of application:
The safety guard system for warehouse partioning ECONFENCE® BASIC LINE ZINK is our bestseller and customer favourite in warehouse logistics, production and materials handling technology. With a tested impact energy of 950 joules, it is not only stable but also very economical to buy. The innovative frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all. Its galvanised and visually appealing surface finish ensures increased corrosion protection.
Intended use:
The double hinge door for warehouse partioning TS01 is a component of the "ECONFENCE® BASIC LINE ZINC" partition wall system and can be used as a separating distance protection device without locking device as a maintenance door.
GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:
- Guaranteed high load capacity
- Low ground clearance of the safety fence of 38 mm
- Simple and fast mounting of the protective device
- Operating instructions included
- Delivery with EC Declaration of Conformity and CE marking when ordering a protective fence system
| System height: | 2000mm |
| Product type: | Door |
| Type of material: | Steel |
| Surface refinement: | Galvanizing |
TECHNICAL DATA:
| Product type: | 2-leaf swing door |
| Application: | Opening direction traffic leaf DIN right / blind leaf with positioning bolt on door cross bar |
| Scope of delivery: | 2 x door post, door cross bar, 2 x door wings, mounting accessories incl. accessory set for grid mounting |
| Mounting height: | 2120 mm |
| Door leaf height: | 2008 mm |
| Axial dimension: | 1952 mm |
| Clearance width: | 1792 mm |
| Door panel: | Grid element with laterally welded profile frame QR40 |
| Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
| Lockdown: | Outside knob with reach-through protection, inside aluminium latch, not lockable when closed, with pre-locking function to prevent automatic closing when staying in the maintenance area. Opening from inside without key (escape release) |
| Ground clearance: | 38 mm |
| Door post dimensions: | 60 x 40 x 2 x 2000 mm |
| Footplate dimensions: | 180 x 180 x 8 mm, electrogalvanized with a blue passivation according to DIN EN ISO 19598 |
| Weight: | 78 Kg |
| Material type: | Steel |
| Surface finish: | hot-dip galvanized according to DIN EN ISO1461 |
| Manufacturer: | TIEMANN Schutz-Systeme GmbH |
| Product brand: | ECONFENCE® |
| Product line: | BASIC LINE ZINC |
| CAD data: | Yes |
