Wall element for mesh partition wall ECONFENCE® BASIC LINE ZINK 2000x1000mm

€156.00 *
Quantity Unit price
To 9
€156.00 * ( €185.64 VAT included )
From 10
€150.00 * ( €178.50 VAT included )

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

  • B10020019-VZ
Area of application: The proven ECONFENCE®  BASIC LINE ZINK mesh partition wall system... more

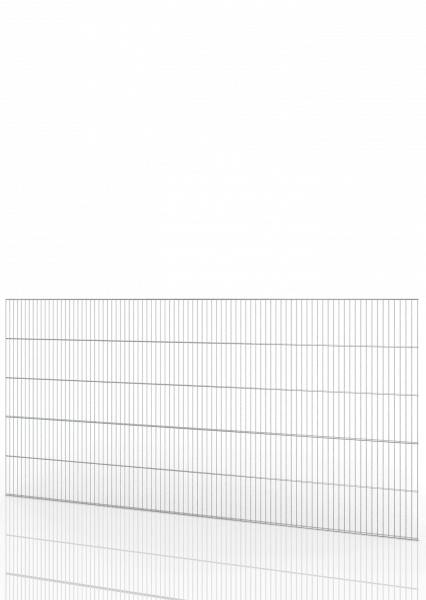

Wall element for mesh partition wall ECONFENCE® BASIC LINE ZINK 2000x1000mm

Area of application:

The proven ECONFENCE®  BASIC LINE ZINK mesh partition wall system for warehousing and logistics is our bestseller and customer favorite for use in warehouse logistics, production and conveyor technology. With a tested impact energy of 950 joules, it is not only stable, but also very economical to purchase.  The innovative frameless element design, which is used in all our product lines, guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches can be made in no time at all. Its galvanized and visually appealing surface finish ensures increased corrosion protection.

Intended use:

The mesh partition wall system ECONFENCE®  BASIC LINE ZINC is intended for use as a fixed separating distance guard to protect people from reaching danger points on machines and systems.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test in accordance with DIN EN ISO 14120)
  • Low ground clearance of the safety fence system of 38 mm
  • Elements can be cut to size on site thanks to frameless mesh construction
  • Quick and easy installation of the safety guard
  • Operating instructions included
  • Delivery with EC declaration of conformity and CE marking when ordering a protective fence system
Product type: Grid
Type of material: Steel
Surface refinement: Galvanizing
System height: 3000mm
Technical data: Product type: Protective... mehr

Technical data:

Product type: Protective grille
Element width: 1983 mm
Element height: 1006 mm
Horizontal wire thicknesses: 15 x 6 mm flat bar, 5.5 mm round wire
Vertical wire thickness: 3.5 mm round wire
Mesh size: 19 x 190 mm, spot-welded
Weight: 12 kg
Material type: Steel
Surface finish: hot-dip galvanized according to DIN EN ISO1461
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE ZINC
CAD data: Yes
