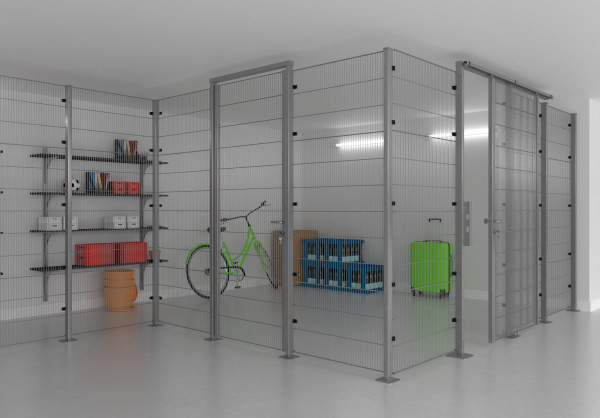

Preview: Mesh partition for basement, Modular system ECONFENCE® BASIC LINE ZINC HIGH 2000MM Preview: Mesh partition for basement, Modular system ECONFENCE® BASIC LINE ZINC HIGH 2000MM
Mesh partition for basement, Modular system ECONFENCE® BASIC LINE ZINC HIGH 2000MM
Mesh partition for basement, Modular system ECONFENCE® BASIC LINE ZINC HIGH 2000MM


Mesh partition for basement, Modular system ECONFENCE® BASIC LINE ZINC HIGH 2000MM

Tiemann Schutz-Systeme GmbH
€201.00 *
Quantity Unit price
To 9 		€201.00 * ( €239.19 VAT included )
From 10 		€190.00 * ( €226.10 VAT included )

Prices plus VAT (free shipping)

Stock items. Ready for dispatch in 48 hours

  • Article-no.: SW10131
  • Delivery unit: 1x row post BRP2000-VZ-S01+ 1x grating B20010019-VZ-W incl. fixing material (= 1 linear meter)
  • NOTE: The article is supplied without doors, end and corner posts. You will find supplementary articles under "Matching"
Matching
Matching
Close menu
Description TECHNICAL DATA Downloads Complementary products
Description
FIELD OF APPLICATION: The mesh partitioning system ECONFENCE® BASIC LINE ZINK for... more
Close menu
Mesh partition for basement, Modular system ECONFENCE® BASIC LINE ZINC HIGH 2000MM

FIELD OF APPLICATION:

The mesh partitioning system ECONFENCE® BASIC LINE ZINK for basement is our bestseller and customer favourite. Especially for the use in residential buildings and data centre enclosures, it is not only stable with a tested impact energy of 950 joules, but also very economical to buy. The innovative frameless element construction method used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all. Its galvanised and visually appealing surface finish ensures increased corrosion protection.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test according to DIN EN ISO 14120)
  • Low ground clearance of the safety fence of 38 mm
  • Element cuts on site possible due to frameless grid construction
  • Simple and fast mounting of the protective device
  • Operating instructions included
Product type: Modular system
System height: 2000mm
Type of material: Steel
Surface refinement: Galvanizing
TECHNICAL DATA
TECHNICAL DATA: Product type: Modular system      ... mehr
Close menu

TECHNICAL DATA:

Product type: Modular system
Scope of delivery: 1x row post + 1x grid (W)983x(H)2006mm - incl. mounting material (= 1 running meter)
System height: 2000mm
Horizontal wire thickness: 15 x 6 mm flat bar, 5.5 mm round wire
Vertical wire thickness: 3.5 mm round wire
Mesh size: 19 x 190 mm, spot-welded
Weight: Post - 7,0 KG / Grid - 11,3 KG
Material type: Steel
Surface finish: high quality galvanised
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE ZINC
