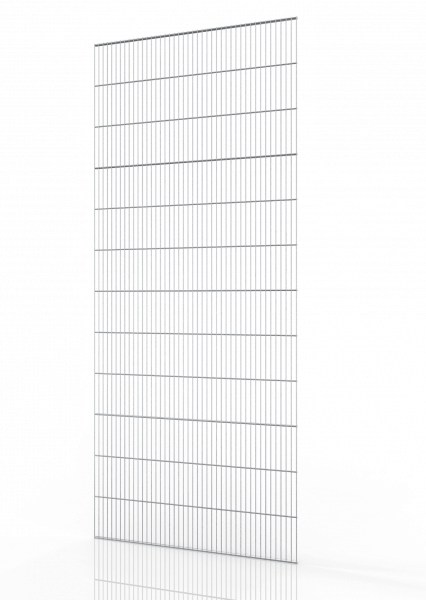

Panel for mesh partioning - data centre ECONFENCE® BASIC LINE ZINC 1000x2400
€134.00 *
Quantity | Unit price |
---|---|
| €134.00 * ( €159.46 VAT included ) |
| €124.00 * ( €147.56 VAT included ) |
Prices plus VAT (free shipping)
Stock items. Ready for dispatch in 48 hours
- Article-no.: B24010019-VZ-D
-
Range of application: The mesh partitioning system ECONFENCE® BASIC LINE ZINK for data... more
Panel for mesh partioning - data centre ECONFENCE® BASIC LINE ZINC 1000x2400
Range of application:
The mesh partitioning system ECONFENCE® BASIC LINE ZINK for data centres is our bestseller and customer favourite. Especially for the use in residential buildings and data centre enclosures, it is not only stable with a tested impact energy of 950 joules, but also very economical to buy. The innovative frameless element construction method used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all. Its galvanised and visually appealing surface finish ensures increased corrosion protection.
GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:
- Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test according to DIN EN ISO 14120)
- Low ground clearance of the safety fence of 38 mm
- Element cuts on site possible due to frameless grid construction
- Simple and fast mounting of the protective device
- Operating instructions included
- Delivery with EC Declaration of Conformity and CE marking when ordering a protective fence system
Product type: | Grid |
Type of material: | Steel |
Surface refinement: | Galvanizing |
System height: | 2400mm |
Technical data: Product type: Safety... mehr
Technical data:
Product type: | Safety guard |
Element width: | 983 mm |
Element height: | 2406 mm |
Horizontal wire thickness: | 15 x 6 mm flat bar, 5.5 mm round wire |
Vertical wire thickness: | 3.5 mm round wire |
Mesh size: | 19 x 190 mm, spot-welded |
Weight: | 13 Kg |
Material type: | Steel |
Surface finish: | hot-dip galvanized according to DIN EN ISO1461 |
Manufacturer: | TIEMANN Schutz-Systeme GmbH |
Product brand: | ECONFENCE® |
Product line: | BASIC LINE ZINC |
