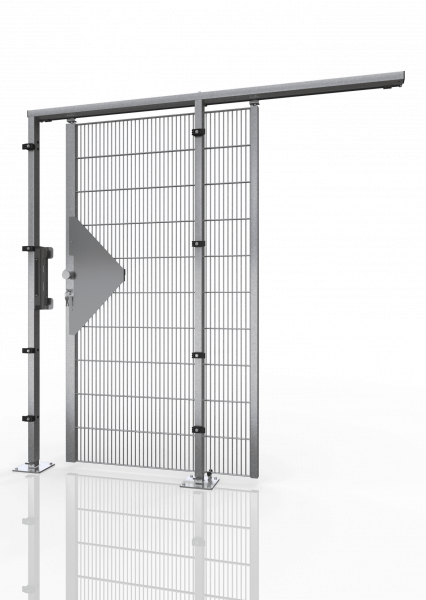

Single Sliding door for mesh partitioning - basement ECONFENCE® BASIC LINE ZINC TS01 1000X2000mm

Single Sliding door for mesh partitioning - basement ECONFENCE® BASIC LINE ZINC TS01 1000X2000mm

€1,173.00 *

Quantity	Unit price
To 4	€1,173.00 * ( €1,395.87 VAT included )
From 5	€1,020.00 * ( €1,213.80 VAT included )

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

Article-no.: BSTLR20010019-VZ-BT01-WB
NOTE: Im Lieferumfang ist der Durchgreifschutz, sowie der Knauf nicht enthalten. Die Tür wird mit Klinke / Klinke ausgeliefert. Technische Änderungen behalten wir uns vor.

FIELD OF APPLICATION: The mesh partitioning system ECONFENCE® BASIC LINE ZINK for... more

Close menu

Single Sliding door for mesh partitioning - basement ECONFENCE® BASIC LINE ZINC TS01 1000X2000mm

FIELD OF APPLICATION:

The mesh partitioning system ECONFENCE® BASIC LINE ZINK for basement is our bestseller and customer favourite. Especially for the use in residential buildings and data centre enclosures, it is not only stable with a tested impact energy of 950 joules, but also very economical to buy. The innovative frameless element construction method used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all. Its galvanised and visually appealing surface finish ensures increased corrosion protection.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

Guaranteed high load capacity
Low ground clearance of the safety fence of 38 mm
Simple and fast mounting of the protective device
Operating instructions included
Delivery with EC Declaration of Conformity and CE marking when ordering a protective fence system

System height:	2000mm
Product type:	Door
Type of material:	Steel
Surface refinement:	Galvanizing

TECHNICAL DATA: Product type: 1-leaf sliding door Application: Opening... mehr

Close menu

TECHNICAL DATA:

Product type:	1-leaf sliding door
Application:	Opening direction Universal (DIN left / DIN right) - Internal running
Scope of delivery:	2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting
Mounting height:	2138 mm
Door leaf height:	2008 mm
Axial dimension:	1030 mm
Clearance width:	755 mm
Door panel:	Grid element with laterally welded profile frame QR40
Door panel:	Grid mesh width 19 x 190 mm, spot-welded
Lockdown:	Outside knob with reach-through protection, inside aluminium latch, not lockable when closed, with pre-locking function to prevent automatic closing when staying in the maintenance area. Opening from inside without key (escape release)
Guidance:	2 x height adjustable roller units for sliding door suspension on upper steel rail, lower roller guide
Ground clearance:	38 mm
Door post dimensions:	60 x 40 x 2 x 2000 mm
Footplate dimensions:	180 x 180 x 8 mm, electrogalvanized with a blue passivation according to DIN EN ISO 19598
Weight:	52 Kg
Material type:	Steel
Surface finish:	hot-dip galvanized according to DIN EN ISO1461
Manufacturer:	TIEMANN Schutz-Systeme GmbH
Product brand:	ECONFENCE®
Product line:	BASIC LINE ZINC

open downloads

Close menu

AVAILABLE DOWNLOADS:

Download ECONFENCE® Basic Line ZINK Instruction manual door BT01
