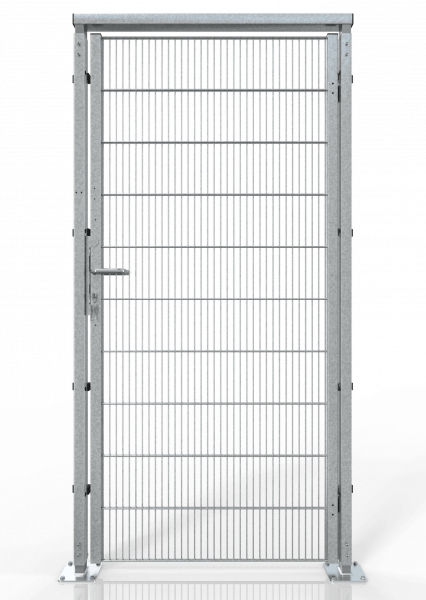

Single hinge door for mesh partioning - basement ECONFENCE® BASIC LINE ZINC BT01-WB 1000x2400MM
Quantity | Unit price |
---|---|
| €848.00 * ( €1,009.12 VAT included ) |
| €763.00 * ( €907.97 VAT included ) |
Prices plus VAT (free shipping)
Stock items. Ready for dispatch in 48 hours
- Article-no.: BTLR24010019-VZ-BT01-WB
-
FIELD OF APPLICATION:
The mesh partitioning system ECONFENCE® BASIC LINE ZINK for basement is our bestseller and customer favourite. Especially for the use in residential buildings and data centre enclosures, it is not only stable with a tested impact energy of 950 joules, but also very economical to buy. The innovative frameless element construction method used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all. Its galvanised and visually appealing surface finish ensures increased corrosion protection.
GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:
- Guaranteed high load capacity
- Low ground clearance of the safety fence of 38 mm
- Simple and fast mounting of the protective device
- Operating instructions included
- Delivery with EC Declaration of Conformity and CE marking when ordering a protective fence system
Product type: | Door |
Type of material: | Steel |
Surface refinement: | Galvanizing |
System height: | 2400mm |
TECHNICAL DATA:
Product type: | 1-leaf revolving door |
Application: | Universal (opening direction optional: DIN left / DIN right) |
Scope of delivery: | 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting |
Mounting height: | 2520 mm |
Door leaf height: | 2408 mm |
Axial dimension: | 1006 mm |
Clearance width: | 855 mm |
Door panel: | Grid element with laterally welded profile frame QR40 |
Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
Lockdown: | Outside and inside aluminium latch, lockable when closed. |
Ground clearance: | 38 mm |
Door post dimensions: | 60 x 40 x 2 x 2400 mm |
Footplate dimensions: | 140 x 140 x 6 mm, electrogalvanized with a blue passivation according to DIN EN ISO 19598 |
Weight: | 62 Kg |
Material type: | Steel |
Surface finish: | Mullion + transom: hot-dip coated strip according to DIN EN 10346 / DIN EN 10143, door leaf: hot-dip galvanised according to DIN EN ISO1461 |
Manufacturer: | TIEMANN Schutz-Systeme GmbH |
Product brand: | ECONFENCE® |
Product line: | BASIC LINE ZINC |
