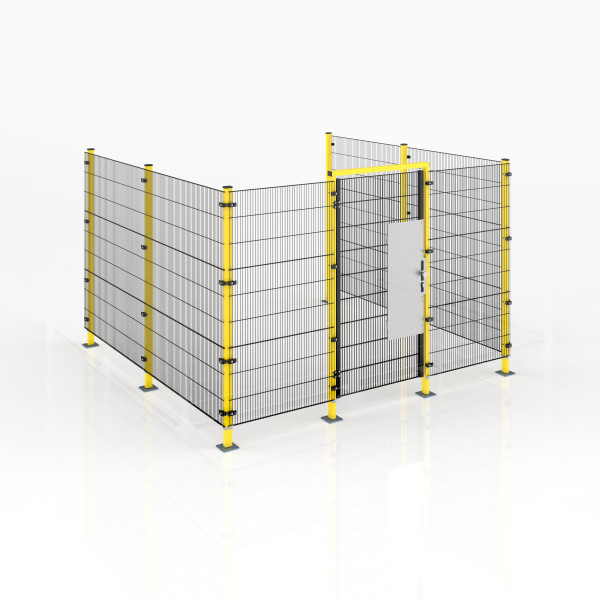

The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The attractive powder coating brings the corporate design of your company into the production if desired. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.
The safety guard system for machine guarding ECONFENCE® BASIC LINE is intended for use as a separating distance protection device to protect people from reaching danger points on machines and systems.
| Product type: | Modular system |
| System height: | 2000mm |
| Surface refinement: | Powder coating |
| RAL colour: | 1021 - rape yellow, 9005 - matt black |
| Type of material: | Steel |
| Product type: | Modular system |
| Scope of delivery: | 4x grille B18015019-4-9005, 2x grille B18010019-4-9005, 1x revolving door BTLR18010019-TS01-4-1021-4-9005, |
| System height: | 2000mm |
| Horizontal wire thickness: | 15 x 6 mm flat bar, 5.5 mm round wire |
| Vertical wire thickness: | 3.5 mm round wire |
| Mesh size: | 19 x 190 mm, spot-welded |
| Weight: | Item: 192.30 kg - Pallet: approx. 20 kg - Total weight: approx. 212.30 kg |
| Material type: | Steel |
| Surface finish: | high quality powder-coated |
| RAL colour: | Post - 1021 rape yellow / grid - 9005 matt black |
| Manufacturer: | TIEMANN Schutz-Systeme GmbH |
| Product brand: | ECONFENCE® |
| Product line: | BASIC LINE |
| Certification: | Yes |
