| Quantity | Unit price |
|---|---|
| | €629.00 * ( €748.51 VAT included ) |
| | €604.00 * ( €718.76 VAT included ) |
Prices plus VAT (free shipping)
Stock items. Ready for dispatch in 48 hours
The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

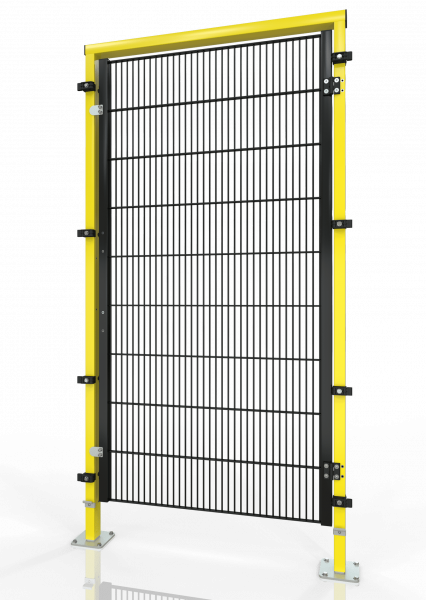

The single hinge door for machine guarding GH01 is part of the "ECONFENCE® BASIC LINE" safety grid system and can be used as a movable guard in conjunction with a suitable interlocking device.
| System height: | 2000mm |
| Product type: | Door |
| Surface refinement: | Powder coating |
| RAL colour: | 1021 - rape yellow, 9005 - matt black |
| Type of material: | Steel |
| Product type: | 1-leaf revolving door |
| Application: | Universal (opening direction optional: DIN left / DIN right) |
| Scope of delivery: | 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting |
| Mounting height: | 2053 mm |
| Door leaf height: | 1808 mm |
| Axial dimension: | 1002 mm |
| Clearance width: | 854 mm |
| Door panel: | Grid element with laterally welded profile frame QR40 |
| Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
| Lockdown: | Door leaf with smooth stop bar for mounting a freely plannable locking device (suitable mounting plates and locking devices on request) |
| Ground clearance: | 174 mm |
| Door post dimensions: | 60 x 40 x 2 x 2000 mm |
| Footplate dimensions: | 140 x 140 x 8 mm, 30 mm height adjustable, electrogalvanized with a blue passivation according to DIN EN ISO 19598 |
| Weight: | 46 Kg |
| Material type: | Steel |
| Surface finish: | high quality powder-coated |
| RAL colour: | Post + cross member - RAL 1021 rape yellow / door leaf - RAL 9005 matt black |
| Manufacturer: | TIEMANN Schutz-Systeme GmbH |
| Product brand: | ECONFENCE® |
| Product line: | BASIC LINE |
| CAD data: | Yes |
