| Quantity | Unit price |
|---|---|
| | €970.00 * ( €1,154.30 VAT included ) |
| | €931.00 * ( €1,107.89 VAT included ) |
Prices plus VAT (free shipping)
Stock items. Ready for dispatch in 48 hours
The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable, but also cost-effective to purchase. The appealing powder coating brings the corporate design of your company into the production if desired. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

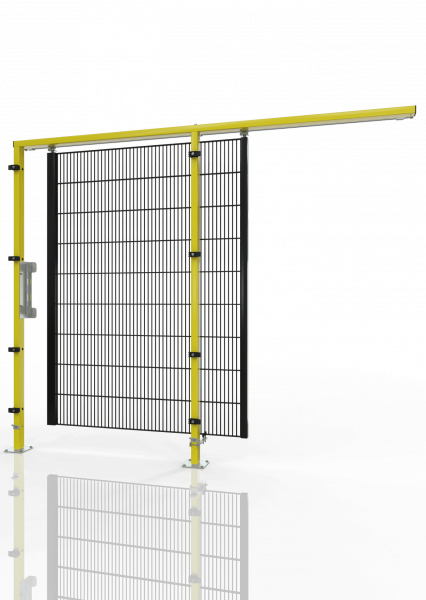

The single sliding door for machine guarding GH01 is part of the "ECONFENCE® BASIC LINE" safety grid system and can be used as a movable guard in conjunction with a suitable interlocking device.
| System height: | 2000mm |
| Product type: | Door |
| Surface refinement: | Powder coating |
| RAL colour: | 1021 - rape yellow, 9005 - matt black |
| Type of material: | Steel |
| Product type: | 1-leaf sliding door |
| Application: | Opening direction Universal (DIN left / DIN right) |
| Scope of delivery: | 2 x door posts, door crossbar, door wings, mounting accessories incl. accessory set for grid mounting |
| Mounting height: | 2067 mm |
| Door leaf height: | 1808 mm |
| Axial dimension: | 1230 mm |
| Clearance width: | 953 mm |
| Door panel: | Grid element with laterally welded profile frame QR40 |
| Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
| Lockdown: | Door leaf with smooth stop bar for mounting a freely plannable locking device (suitable mounting plates and locking devices on request) |
| Guidance: | 2 x height adjustable roller units for sliding door suspension on upper steel rail, lower roller guide |
| Ground clearance: | 170 mm |
| Door post dimensions: | 60 x 40 x 2 x 2000 mm |
| Footplate dimensions: | 140 x 140 x 8 mm, electrogalvanized with a blue passivation according to DIN EN ISO 19598 |
| Weight: | 65,5 Kg |
| Material type: | Steel |
| Surface finish: | high quality powder-coated |
| RAL colour: | Post + cross bar RAL 1021 rape yellow / door leaf RAL 9005 matt black |
| Manufacturer: | TIEMANN Schutz-Systeme GmbH |
| Product brand: | ECONFENCE® |
| Product line: | BASIC LINE |
| CAD data: | Yes |
