| Quantity | Unit price |
|---|---|
| | €793.00 * ( €943.67 VAT included ) |
| | €761.00 * ( €905.59 VAT included ) |
Prices plus VAT (free shipping)
Delivery time - 20-25 working days
The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

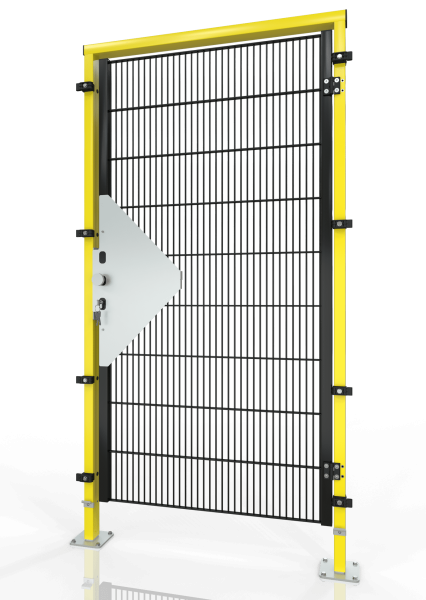

The single hinge door for machine guarding TS01 door variant is part of the "ECONFENCE® BASIC LINE" safety grid system and can be used as a separating safety guard without locking device, as a maintenance door.
| Product type: | Door |
| Surface refinement: | Powder coating |
| RAL colour: | 1021 - rape yellow, 9005 - matt black |
| Type of material: | Steel |
| System height: | 2200mm |
| Product type: | 1-leaf revolving door |
| Application: | Universal (opening direction optional: DIN left / DIN right) |
| Scope of delivery: | 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting |
| Mounting height: | 2253 mm |
| Door leaf height: | 2008 mm |
| Axial dimension: | 1008 mm |
| Clearance width: | 860 mm |
| Door panel: | Grid element with laterally welded profile frame QR40 |
| Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
| Lockdown: | Outside knob with reach-through protection, inside aluminium latch, not lockable when closed, with pre-locking function to prevent automatic closing when staying in the maintenance area. Opening from inside without key (escape release) |
| Ground clearance: | 174 mm |
| Door post dimensions: | 60 x 40 x 2 x 2200 mm |
| Footplate dimensions: | 140 x 140 x 8 mm, 30 mm height adjustable, electrogalvanized with a blue passivation according to DIN EN ISO 19598 |
| Weight: | 52 Kg |
| Material type: | Steel |
| Surface finish: | high quality powder-coated |
| RAL colour: | Post + cross member - RAL 1021 rape yellow / door leaf - RAL 9005 matt black |
| Manufacturer: | TIEMANN Schutz-Systeme GmbH |
| Product brand: | ECONFENCE® |
| Product line: | BASIC LINE |
| Certifications: | Yes |
| CAD data: | Yes |
