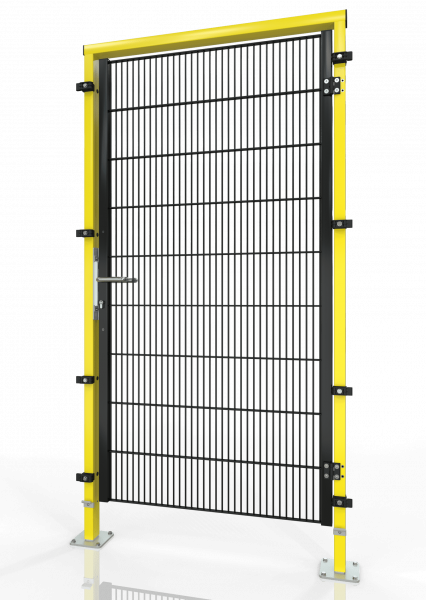

Single hinge door for machine guarding ECONFENCE® BASIC LINE BT01 1000x2200 RAL1021-9005
| Quantity | Unit price |
|---|---|
| | €798.00 * ( €949.62 VAT included ) |
| | €766.00 * ( €911.54 VAT included ) |
Prices plus VAT (free shipping)
Delivery time - 20-25 working days
- Article-no.: BTLR20010019-BT01-4-1021-4-9005
-
Range of application:
The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.
Intended use:
As a component of the "ECONFENCE® BASIC LINE" protective grating system in conjunction with a suitable interlocking device (as defined by DIN EN ISO 14119), the single hinge door for machine guarding BT01 is intended to use as a movable guard to protect persons against reaching danger points on machines and systems. The interlocking device itself and its fastening accessories are not part of the product or the certificate.
Guaranteed safety ex works / product and user benefits:
- Guaranteed high load capacity
- DGUV TEST - Type tested - Conform MRL 2006/42/EG
- Simple and fast mounting of the protective device
- Delivery with EC declaration of conformity and CE marking ex works
| Product type: | Door |
| Surface refinement: | Powder coating |
| RAL colour: | 1021 - rape yellow, 9005 - matt black |
| Type of material: | Steel |
| System height: | 2200mm |
Technical data:
| Product type: | 1-leaf revolving door |
| Application: | Universal (opening direction optional: DIN left / DIN right) |
| Scope of delivery: | 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting |
| Mounting height: | 2253 mm |
| Door leaf height: | 2008 mm |
| Axial dimension: | 1008 mm |
| Clearance width: | 860 mm |
| Door panel: | Grid element with laterally welded profile frame QR40 |
| Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
| Lockdown: | Outside and inside aluminium latch, not lockable when closed, with pre-locking function to prevent automatic closing when staying in the danger zone |
| Ground clearance: | 174 mm |
| Door post dimensions: | 60 x 40 x 2 x 2200 mm |
| Footplate dimensions: | 140 x 140 x 8 mm, 30 mm height adjustable, electrogalvanized with a blue passivation according to DIN EN ISO 19598 |
| Weight: | 52 Kg |
| Material type: | Steel |
| Surface finish: | high quality powder-coated |
| RAL colour: | Post + cross member - RAL 1021 rape yellow / door leaf - RAL 9005 matt black |
| Manufacturer: | TIEMANN Schutz-Systeme GmbH |
| Product brand: | ECONFENCE® |
| Product line: | BASIC LINE |
| Certifications: | Yes |
| CAD data: | Yes |
