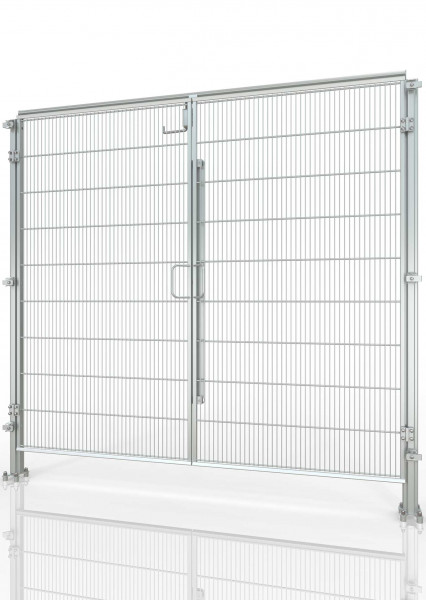

Stainless steel double-leaf hinged door for machine guard HYGIENEFENCE®2000X2000mm
€2,971.00 *
Quantity | Unit price |
---|---|
| €2,971.00 * ( €3,535.49 VAT included ) |
| €2,805.00 * ( €3,337.95 VAT included ) |
Prices plus VAT (free shipping)
Delivery time - 20-25 working days
- Article-no.: YUDT18020019
- NOTE: the floor spacer sleeves shown are not included in the scope of delivery (see accessory article TSB-10426)
-
Area of application: HYGIENEFENCE® - the hygiene-certified machine guarding system... more
Stainless steel double-leaf hinged door for machine guard HYGIENEFENCE®2000X2000mm
Area of application:
HYGIENEFENCE® - the hygiene-certified machine guarding system especially for food processing machines is the hygienically clean and safe solution when using distance protection devices. Recommended for the safety of employees and service personnel in the food and beverage and pharmaceutical industries.
Intended use:
The double-leaf stainless steel hinged door for machine guards HYGIENEFENCE® is intended for use as a fixed separating distance guard (as defined in DIN EN 953) to protect people from reaching danger points on machines and systems in the food industry (e.g. bakeries, pharmaceuticals, meat processing plants, cheese dairies, dairies).
Guaranteed safety ex works / product and user benefits:
- Hygiene-certified for food processing machines in accordance with DIN EN 1672-2:2009-07 + (EC) No. 1935/2004
- DGUV TEST - Type-tested - Compliant with MRL 2006/42/EC
- Quick and easy installation - Operating instructions included
- Supplied with EC Declaration of Conformity, CE marking when ordering a protective fencing system
- ECOLAB material testing for compatibility with cleaning agents
Surface refinement: | Pickling |
System height: | 2000mm |
Product type: | Door |
Type of material: | Stainless steel |
Application area: | Food industry |
Technical data: Product type: 2-leaf swing door Application: Opening direction... mehr
Technical data:
Product type: | 2-leaf swing door |
Application: | Opening direction active leaf DIN right / dummy leaf with locking bolt on door crossbar |
Scope of delivery: | 2 x door posts with welded-on base plate, door crossbar, 2 x door leaves, mounting accessories incl. accessory set with grille attachment |
Installation height: | 2039 mm |
Door leaf height: | 1840 mm |
Axial dimension: | 2083 mm |
Passage width: | 1940 mm |
Door leaf: | Grille element with all-round welded QR20 profile frame |
Door panel: | Grille mesh width 19 x 190 mm, spot-welded |
Locking mechanism: | Stainless steel door handle with magnetic catch |
Floor clearance: | 138 mm |
Door post dimensions: | 60 x 65 x 3 x 1998 mm |
Base plate dimensions: | 120 x 100 x 6 mm |
Weight: | 58 kg |
Material type: | Stainless steel |
Material grade: | 1.4301 |
Surface finish: | Pickling |
Manufacturer: | TIEMANN Schutz-Systeme GmbH |
Product brand: | HYGIENEFENCE® |
Certifications: | Yes |
CAD data: | Yes |
