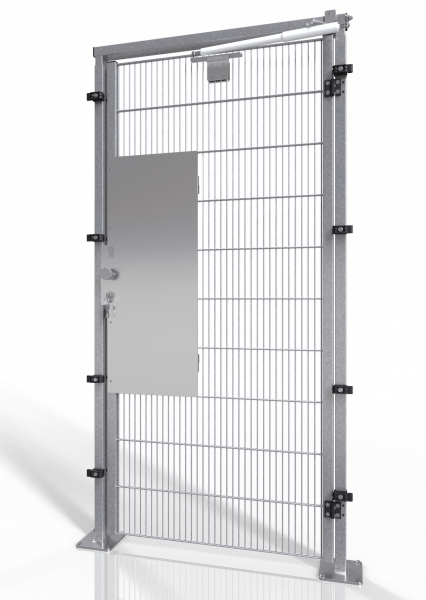

SINGLE HINGE DOOR ECONFENCE® BASIC LINE FALL PROTECTION TS01 1000X2000MM
| Quantity | Unit price |
|---|---|
| | €1,630.00 * ( €1,939.70 VAT included ) |
| | €1,492.00 * ( €1,775.48 VAT included ) |
Prices plus VAT (free shipping)
Delivery time - 20-25 working days
- Article-no.: BTLR20010019-VZ-S10
-
FIELD OF APPLICATION:
The safety fence system ECONFENCE® BASIC LINE is a type-tested safety fence with integrated railing. As the first certified fall protection system with DGUV test mark, the fall protection complies with the specifications of the building product regulation according to DIN EN 1090 and at the same time with DIN EN ISO 14122-3. The innovation for use in warehouse logistics as well as in mechanical and plant engineering thus solves two normative specified disciplines for the first time, depending on the user case. With a tested impact energy of 950 joules, the fall protection is not only stable but also very economical.
INTENDED USE:
The TS01 door variant is part of the "ECONFENCE® BASIC LINE FALL PROTECTION" fall protection system and can be used as a separating protective device without locking device, as a maintenance door.
GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:
- Guaranteed high load capacity
- Simple and fast assembly
- Operating instructions included
- Delivery with EC Declaration of Conformity and CE marking when ordering a fall protection system
| System height: | 2000mm |
| Product type: | Door |
| Type of material: | Steel |
| Surface refinement: | Galvanizing |
Technical data:
| Product type: | 1-leaf revolving door |
| Application: | Universal (opening direction optional: DIN left / DIN right) |
| Scope of delivery: | 2 x door posts with welded-on base plate, door traverse, door wing, mechanical door closer, installation accessories incl. accessory set for grid mounting |
| Mounting height: | 2144 mm |
| Door leaf height: | 2008 mm |
| Axial dimension: | 1006 mm |
| Clearance width: | 941 mm |
| Door panel: | Grid element with laterally welded profile frame QR40 |
| Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
| Lockdown: | Outside knob with reach-through protection, inside aluminium door knob cranked, not lockable when closed, with pre-locking function to prevent automatic closing when staying in the maintenance area. Opening from inside without key (escape release) |
| Ground clearance: | 41 mm |
| Door post dimensions: | 60 x 40 x 2 x 2036 mm |
| Footplate dimensions: | 170 x 160 x 8 mm, welded with post profile |
| Weight: | 50 Kg |
| Material type: | Steel |
| Surface finish: | Door jamb + traverse: electrogalvanized with a blue passivation Zn/An/T0 according to DIN EN ISO 19598 / Door leaf: hot-dip galvanized according to DIN EN ISO1461 |
| Manufacturer: | TIEMANN Schutz-Systeme GmbH |
| Product brand: | ECONFENCE® |
| Product line: | BASIC LINE FALL PROTECTION |
| CAD data: | Yes |
